Binaries

Decompose pre-compiled binaries and archives to identify open source components without source-code access.

4 min readUpdated Jul 9, 2026

Enterprise feature

Overview

Binary Decomposition analyzes pre-compiled binaries and archives (without access to source code) to identify the open source components inside them. Reach for it when you have a shipped artifact (a .exe, .jar, firmware image, or container archive) but not the source that produced it.

Importing a binary

1

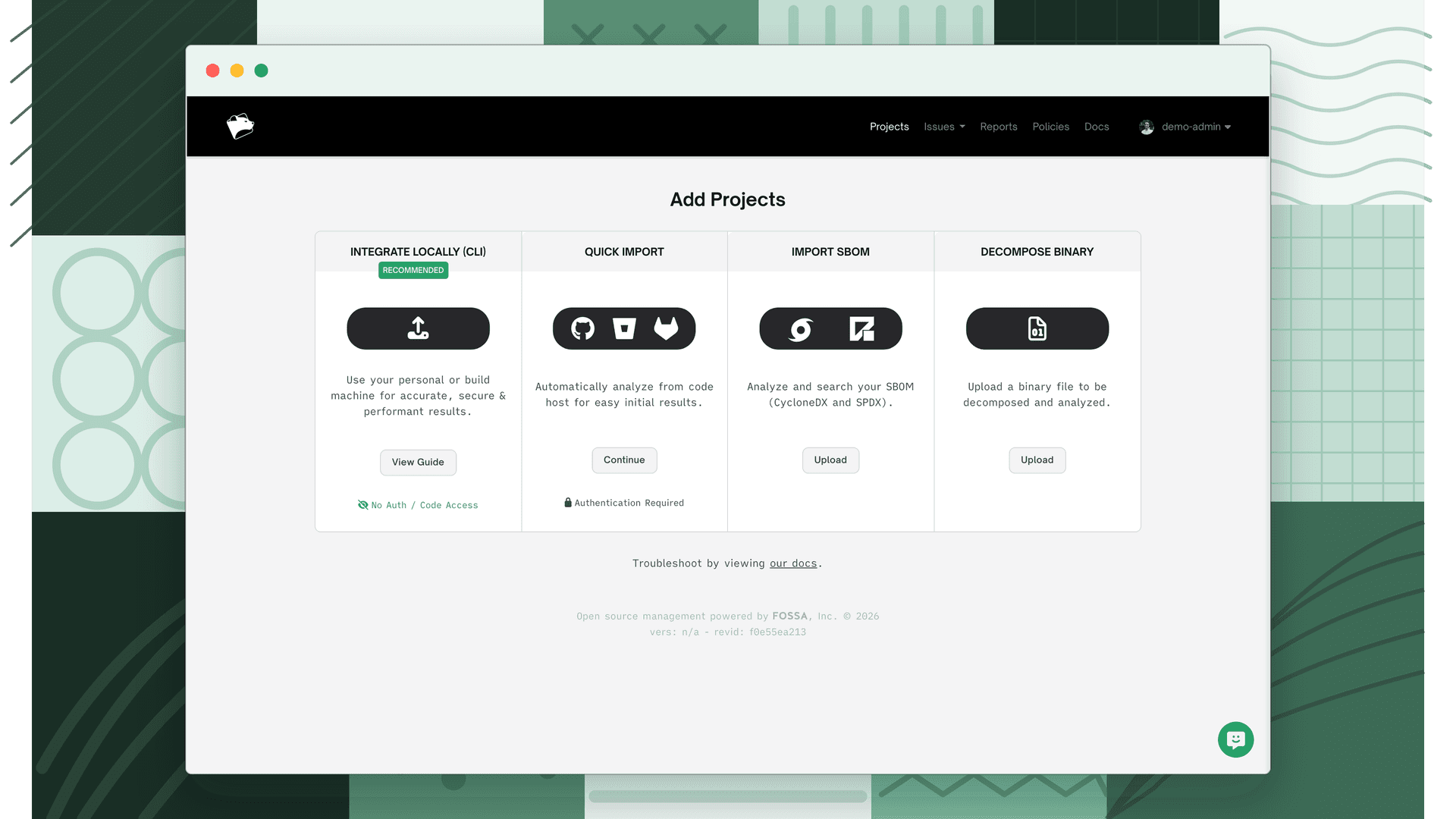

Open the Decompose Binary importer
From the Add Projects page, choose Decompose Binary.
2

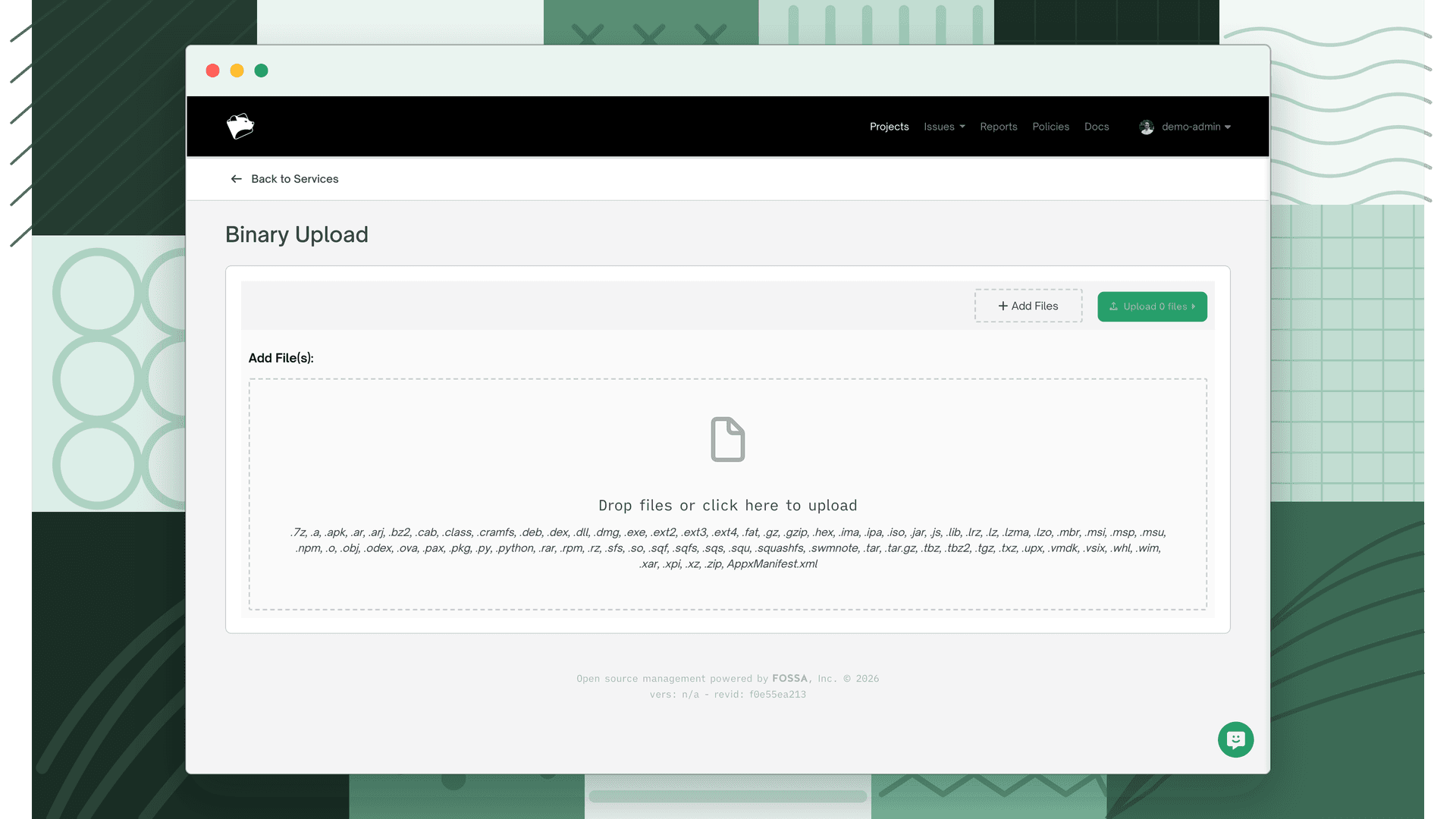

Add your files
Select Add Files and choose the binary or archive to import. Bulk import is supported. Select as many files as you need.
3

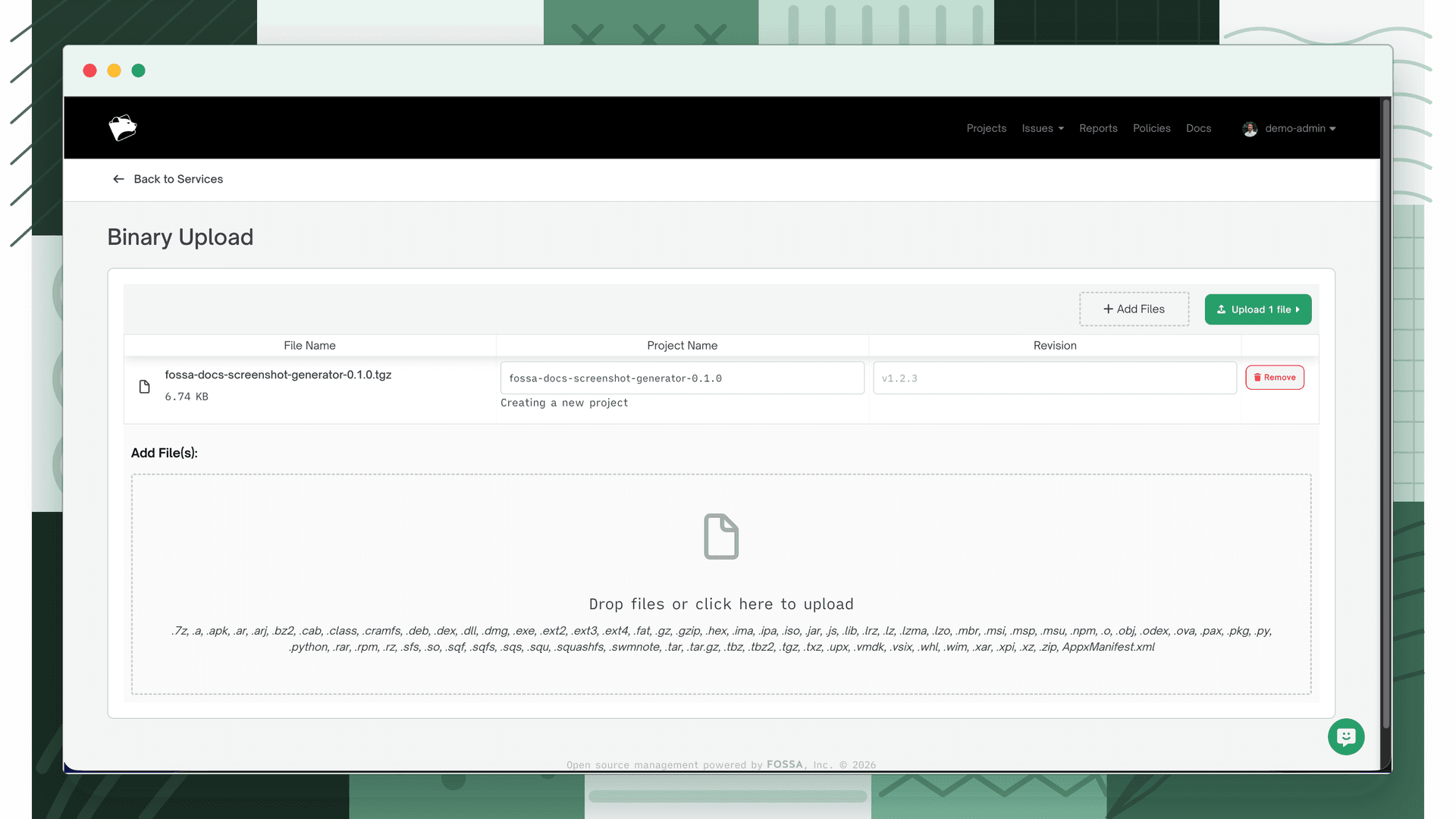

Name the project and set a version
Add a unique name and a semantic version number.
4

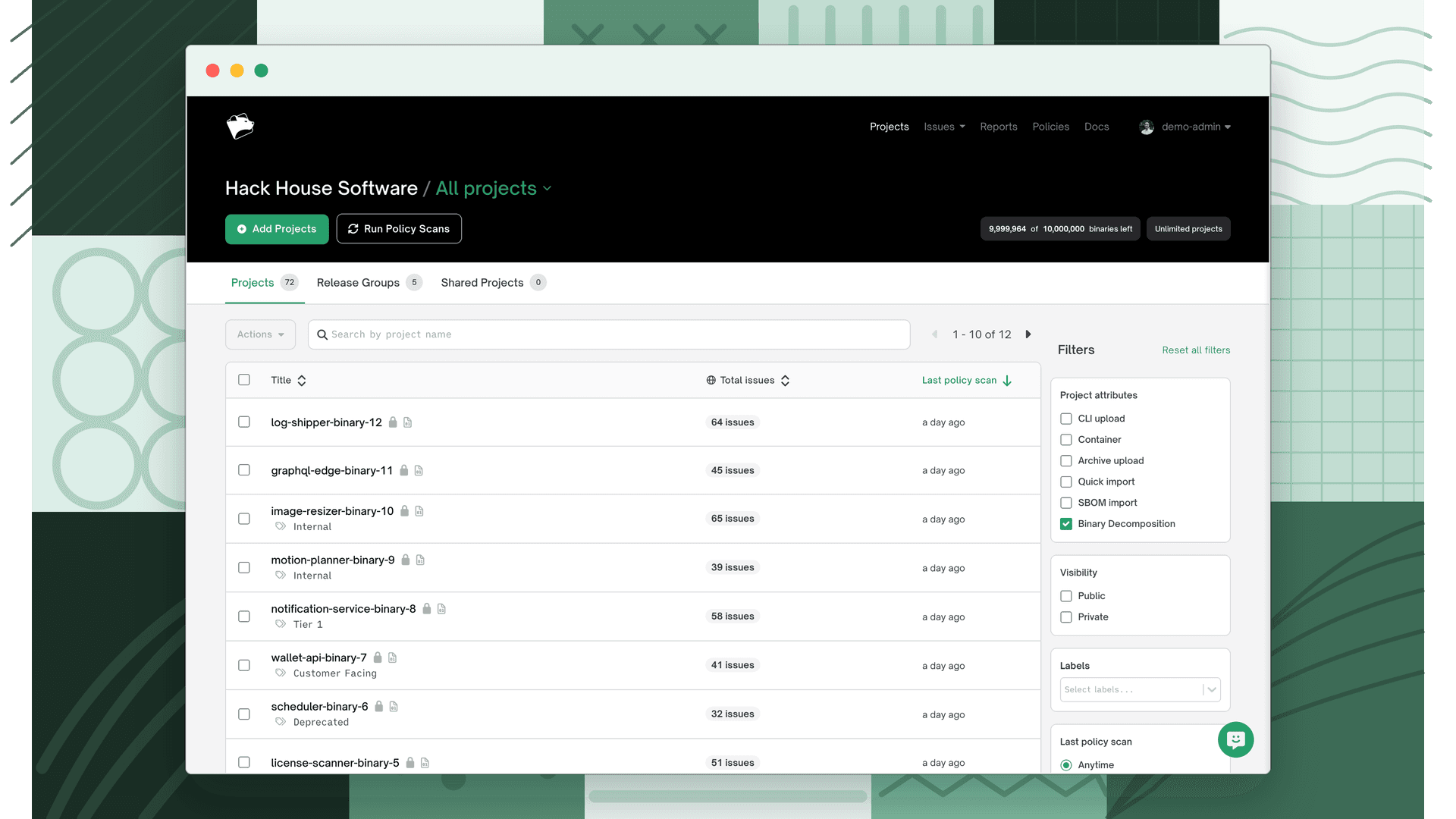

Review in your project list
When upload and analysis finish, the binary appears in Projects. Use the Binary Decomposition project filter to find binary projects quickly; each is marked with the Binary Decomposition icon.

Warning

Importing under an existing binary project name adds the upload as the latest revision of that project rather than creating a new one.

You can upload a new binary as a new revision of any existing binary project at any time.

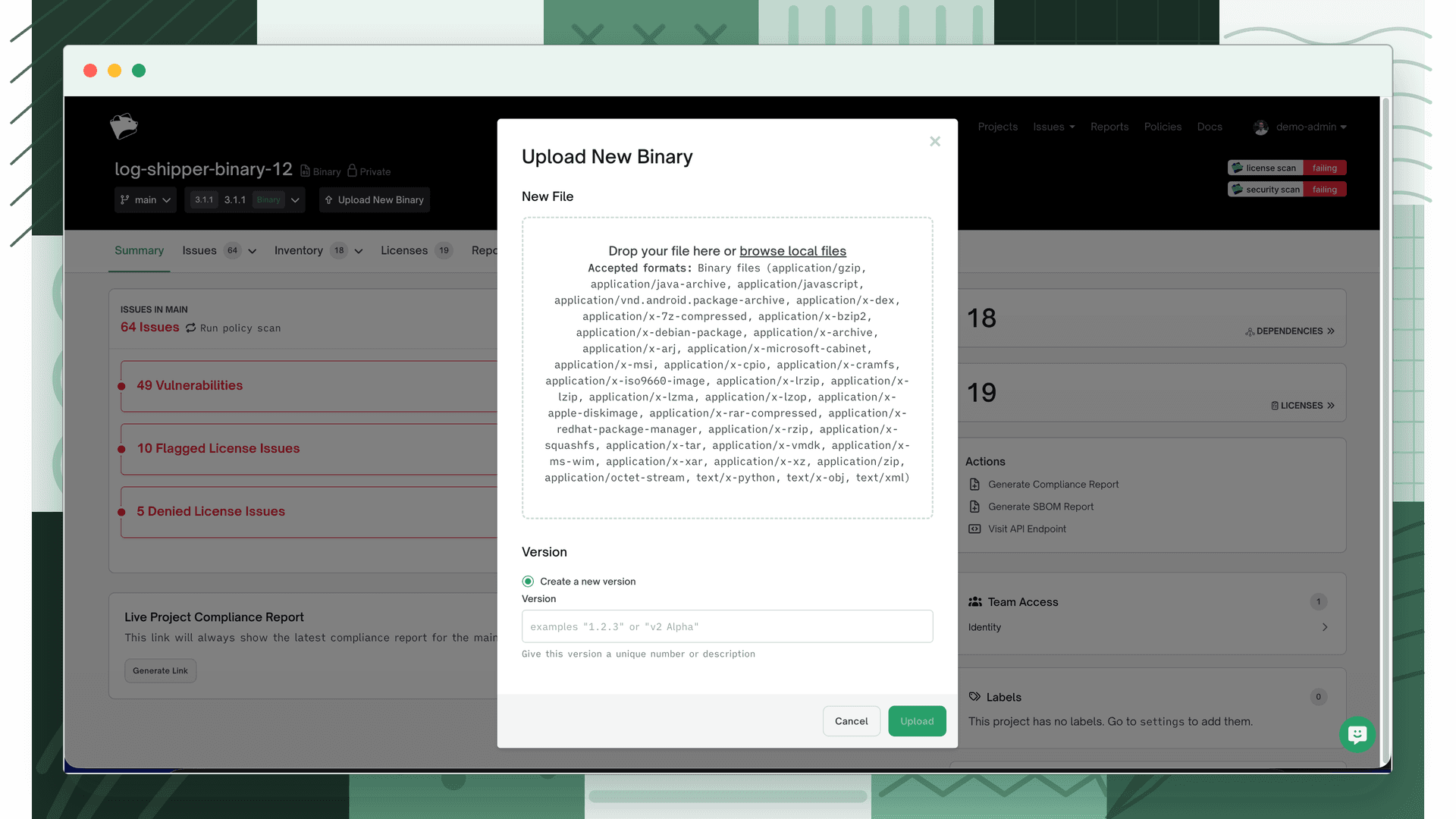

Upload New Binary modal for adding a new revision to an existing binary project

Supported formats

Each revision is a single uploaded file, either an analyzable binary or an archive that FOSSA expands and analyzes. Archives may contain any combination of archive types and analyzable binaries.

Kind	Format	Extensions
Analyzable	Android Dex	`.dex`
Analyzable	Android ODEx	`.odex`
Analyzable	Windows dynamic linked library	`.dll`
Analyzable	Windows executable	`.exe`
Analyzable	Windows object file	`.obj`
Analyzable	Windows registry hive
Analyzable	Windows UWP/AppX package manifest	`AppxManifest.xml`
Analyzable	Firmware (SREC, bFLT, base64, Intel HEX, uBoot, wim; file systems JFFS2 `.img`/`.jffs2`, romfs, yaffs2, ubifs)	varies
Archive	Apple Disk Image	`.dmg`
Archive	AR	`.a`, `.ar`, `.deb`, `.lib`
Archive	arj	`.arj`
Archive	bzip2	`.bz2`, `.tbz`, `.tbz2`
Archive	Cab	`.cab`, `.msu`
Archive	Compound types	`.msi`, `.msp`
Archive	Cpio	`.cpio`
Archive	cramfs	`.cramfs`
Archive	Docker container	`.tar.gz`
Archive	Ext2 / Ext3 / Ext4	`.ext2`, `.ext3`, `.ext4`
Archive	FAT	`.fat`
Archive	GZIP	`.gz`
Archive	HFS	`.hfs`, `.hfsx`
Archive	Jar	`.jar`, `.war`, `.ear`
Archive	LZ4	`.lz4`
Archive	Lzip	`.lz`
Archive	LZMA	`.lzma`
Archive	LZOP	`.lzo`
Archive	Mach	`.mach`
Archive	NTFS	`.ntfs`
Archive	RPM	`.rpm`
Archive	RAR	`.rar`
Archive	Roff	`.man`, `.roff`
Archive	RPM DB	`.rpmdb`
Archive	RPM sign	`.sig`
Archive	SFS	`.sfs`
Archive	SquashFS	`.sqsh`, `.squashfs`, `.sfs`, `.sqf`, `.sqfs`, `.sqs`, `.squ`
Archive	Tar	`.tar`, `.ova`
Archive	upx	`.upx`
Archive	VMDK	`.vmdk`
Archive	Windows Image Format	`.wim`, `.swm`
Archive	Xar	`.xar`, `.pkg`
Archive	Xz	`.xz`, `.txz`
Archive	ZIP	`.zip`, `.ipa`, `.xpi`, `.vsix`, `.whl`, `.apk`
Archive	7z	`.7z`

File size limits

Item	Limit
ISO (uncompressed data)	40 GB
Archive (compressed data, direct or extracted)	7 GB
Analysis target (direct or extracted)	200 MB
Archive file + expanded contents (combined)	17.5 GB
Maximum directory depth	400

A few rules to avoid failed imports:

Uploads through the UI must complete within 2 hours, or the upload fails.
ZIP files must use standard deflate or store compression, prefer standard system zip utilities over WinZip and similar tools. Do not use encrypted ZIP files.
FOSSA respects object permissions inside an archive, so make sure all files and directories are readable by all users.
Archive file extensions must match the table above; rename the archive first if needed. Analyzable binaries don't need a specific extension, but must not use one normally associated with a non-executable file.
Files and directories beyond depth 400 are omitted.
