Gradle

Overview

FOSSA supports Gradle projects, which are most often JVM-based (Java, Kotlin, Android, Scala). You can analyze a project two ways: Quick Import in the web app, or the FOSSA CLI for complex builds. Because Gradle resolves dependencies from Maven repositories, FOSSA treats Gradle as part of the Java ecosystem.

Tool support

How Quick Import works

When Gradle code is imported through the web app, FOSSA attempts to get results out of the box by incrementally running your build and statically resolving the dependency signatures it produces. This supports a wide variety of build states, but more complicated builds often require configuration or inlined settings.

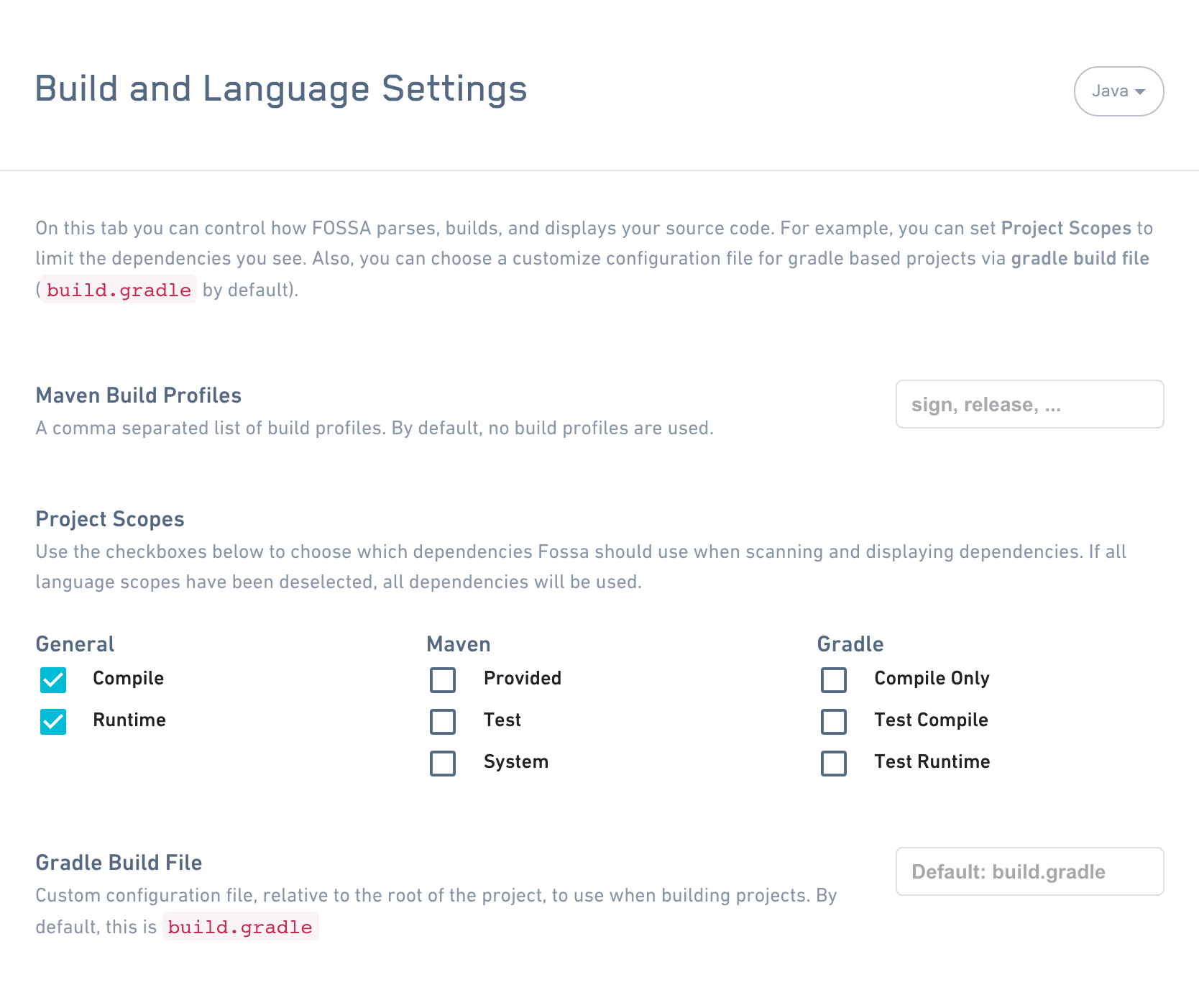

You can configure how FOSSA scans Gradle (and the rest of the Java ecosystem) under each project's settings, in Project Settings → Builds & Languages → Java. FOSSA elects sane defaults, choosing only compile and runtime scopes, setting default build profiles, intelligently handling optional dependencies, and more. To pass environment variables (such as GRADLE_OPTS) during repository scanning, add them under Project Settings → Builds & Languages → General.

Expand

Analyzing with the CLI

For complex Gradle builds, run the FOSSA CLI in CI or on your local machine to upload results from an existing build. The CLI runs inside your build environment, so it can resolve dependencies that Quick Import cannot.

Install the latest release of fossa-cli:

curl -H 'Cache-Control: no-cache' https://raw.githubusercontent.com/fossas/fossa-cli/master/install-latest.sh | bash

Then run fossa analyze from your repository's root directory.

Gradle is a polyglot build tool, popular with Java and Android projects. Builds are specified in a build.gradle/settings.gradle file (Groovy) or a build.gradle.kts/settings.gradle.kts file (Kotlin), and are evaluated as programs that must be dynamically executed.

Analysis strategies

The CLI selects tactics by trying them in preference order and uses the results of the first tactic to succeed.

Concepts

Subprojects and configurations

Most sizable Gradle builds organize their dependencies with two concepts: subprojects and configurations.

Subprojects are used when you have multiple "projects" in a single Gradle build (managed with a single settings.gradle and zero or more build.gradle files). Gradle calls these "multi-projects": one root project, and one or more subprojects. A single subproject roughly corresponds to a single set of outputs, so FOSSA treats subprojects as separate analysis targets. For details, see Creating a multi-project build.

Within a single subproject, Gradle declares dependencies for different "scopes" (contexts such as compilation, test execution, or runtime execution). Gradle calls these scopes configurations, for example implementation, testRuntime, or compileClasspath. Different subprojects can have different configurations, although many common configurations (such as compileClasspath) appear in most subprojects. For more details, see What are dependency configurations.

Each pair of (subproject, configuration) corresponds to one dependency graph. Ideally each pair would be a separate analysis target; for technical reasons the current implementation treats separate subprojects as analysis targets, and treats each subproject as the union of all of its configurations. In practice this should not affect returned dependency results.

Gradle wrappers

Instead of invoking gradle directly, most Gradle projects use a "Gradle wrapper", a shell script vendored in the project that selects and downloads the correct version of Gradle. See The Gradle Wrapper for details. Because of this, the analyzer has logic for selecting which gradle executable to use.

When executing Gradle for an analysis target at ANALYSIS_TARGET_DIR, the CLI prefers (in order):

1. gradlew: first in ANALYSIS_TARGET_DIR, then recursively searching parent directories.
2. gradlew.bat: first in ANALYSIS_TARGET_DIR, then recursively searching parent directories.
3. gradle (from $PATH).

In the documentation below, for brevity, the selected tool is always referred to as gradle.

Discovery

This strategy discovers analysis targets by looking for files whose names start with build.gradle or settings.gradle. This matches build.gradle and settings.gradle as well as Gradle build scripts in other supported languages (build.gradle.*, settings.gradle.*).

It then executes gradle projects in the directory where the build file is found to get the list of subprojects, which are used to create the analysis targets. If there are no subprojects, an analysis target is created for the root project. Otherwise, one analysis target is created per subproject.

Debugging

Determine whether Gradle targets are detected

To confirm the CLI is detecting your Gradle project, run fossa list-targets. The output lists analysis targets in the format type@path.

For each Gradle subproject, you should see a gradle@PATH_TO_ROOT_PROJECT:SUBPROJECT target. If you don't, one of two things is likely happening:

1. Your Gradle project does not have a build.gradle file. This is an unsupported configuration.
2. gradle projects is failing to execute. Make sure a Gradle wrapper is accessible and that gradle projects runs successfully.

Manually checking Gradle dependency results

To verify the CLI's results, run gradle :dependencies in your root project and gradle $SUBPROJECT:dependencies for each subproject. The CLI should produce a graph that is the union of each subproject's dependencies.

If the CLI uploads versions that differ from gradle $SUBPROJECT:dependencies, check whether the subproject dependency's version is the actual version resolved across the entire Gradle build. Different subprojects may select different versions when resolved independently, but a single resolved version is selected when the build is resolved as a whole.

If you'd like to file a bug report about incorrect dependencies, include the list of incorrect dependencies and the commands you ran to obtain that list.

Walkthroughs

Analyzing only specific subprojects

If your Gradle project has multiple subprojects, you may want to analyze only a specific set. In fossa-cli, this is achieved with exclusion filtering.

First, run fossa list-targets to identify the project directory and subproject identifiers:

[ INFO] Found project: gradle@./             # <- The root project. './' means "the project is at the root of the analysis directory".[ INFO] Found target: gradle@./::app         # <- Submodule of the root project.[ INFO] Found target: gradle@./::list[ INFO] Found target: gradle@./::utilities

gradle  @           ./      :         :utilities
------ ---          ---    ---        -----------
Type   Path         Path   Target      Target
       separator           separator

To analyze only utilities, add a .fossa.yml file in the project root:

# filename: .fossa.yml## analyze only gradle@./::utilitiesversion: 3targets:  only:    - type: gradle      path: ./      target: ':utilities'

Likewise, to exclude a specific set of subprojects:

# filename: .fossa.yml## do not analyze gradle@./::app, and gradle@./::utilitiesversion: 3targets:  only:    - type: gradle  exclude:    - type: gradle      path: ./      target: ':app'    - type: gradle      path: ./      target: ':utilities'

Manually specifying Gradle dependencies

If the CLI doesn't natively integrate with your build tool but your build tool uses Gradle dependencies, you can still add them to an uploaded build via manual dependencies:

# fossa-deps.ymlreferenced-dependencies:- type: maven                    # <- Note that this is not "gradle", as referenced in the note above.  name: javax.xml.bind:jaxb-api  # <- Note that this uses the Maven convention of 'groupId:artifactId'.  version: 1.0.0

For more details, see the manual dependencies documentation.

Selecting a set of configurations for analysis

You can use a configuration file to provide the set of configurations to filter analysis to. Any configurations not listed are excluded.

version: 3 experimental:  gradle:    configurations-only:      - example-1-config-to-include      - example-2-config-to-include

Configuration reference

By default, the CLI excludes test and development dependencies from analysis. Configurations are classified as follows:

• Development: compileOnly.
• Test: testImplementation, testCompileOnly, testRuntimeOnly, testCompileClasspath, testRuntimeClasspath.

For Android projects, FOSSA classifies a larger set of configurations as development or test dependencies. This includes the per-variant compile/runtime classpath and metadata configurations (debugCompileClasspath, releaseCompileOnly, the *DependenciesMetadata configurations, lint configurations, the Kotlin compiler classpath configurations, and so on), and the test-metadata configurations (test*DependenciesMetadata, androidJacocoAnt, etc.). FOSSA also classifies any dependency whose configuration name is prefixed with androidTest, debugAndroidTest, releaseUnitTest, or debugUnitTest as a test dependency.

Authenticating to private registries

FOSSA can fetch and resolve Gradle dependencies from private registries like Artifactory, Nexus, or any custom Maven registry. Because Gradle resolves from Maven repositories, these settings live under the Java language settings, which govern the entire Java ecosystem.

1. 1

   Open Java language settings

   Go to Account Settings → Languages → Java (https://app.fossa.com/account/settings/languages/java).

2. 2

   Add a public registry

   To add a public registry, add a new entry under Repositories. FOSSA will begin checking that registry (in order) for the packages your projects bring in.

3. 3

   Add a private registry

   To add an authenticated registry, add two entries (one under Repositories and one under Servers) with a matching Id, and include your credentials in the Servers entry.

Expand

By default, FOSSA resolves Java-ecosystem packages from a set of public registries (Maven Central first, then Cloudera, Sonatype, and others) in order. If you know which registries you'd like FOSSA to prefer, re-order them in the Java Language Settings so the registries most likely to succeed are checked first. This resolves dependencies without cycling through subsequent registries.

Package data

The Gradle build system pulls in dependencies from the repository it resolves against:

The metadata FOSSA pulls in is similar to Maven: available versions, home page URL, and per-dependency Group ID, Artifact ID, resolved version, transitive excludes, and scopes.

FOSSA parses data from all package metadata and scans all code provided in an artifact or associated code archives. If references to license webpages are found, FOSSA crawls the web for licensing information. Where no source code is included in an artifact, FOSSA attempts to resolve it to a known codebase and perform a full code audit. In the Java ecosystem it is common for license data to be stripped when artifacts are published; in these cases license data can be regenerated from the FOSSA registry by enriching build artifacts with data from associated VCSs, parent artifacts, and more.

Gradle properties

Gradle properties can be set via environment variables. Property names should be prefixed with ORG_GRADLE_PROJECT_, as described in the Gradle documentation.
